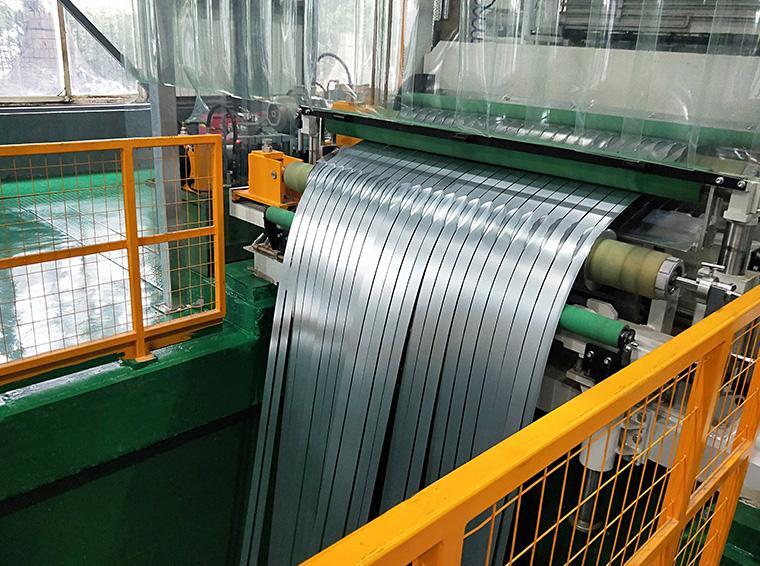

The latest Slitting Line is a state-of-the-art coil processing solution designed to maximize productivity while supporting environmentally conscious manufacturing. Combining energy-saving technology with advanced engineering, this system ensures reduced power consumption, minimal material waste, and precise cutting performance—meeting the needs of modern metalworking industries.
Engineered for versatility, the line is capable of processing a wide range of metals, including High-Speed Steel (HSS), Cold Rolled Steel (CRS), Hot Rolled Steel (HRS), Stainless Steel (SS), and Aluminum (Alum). Its heavy-duty construction allows it to handle coils up to 2,500 mm in width and weighing as much as... moreThe latest Slitting Line is a state-of-the-art coil processing solution designed to maximize productivity while supporting environmentally conscious manufacturing. Combining energy-saving technology with advanced engineering, this system ensures reduced power consumption, minimal material waste, and precise cutting performance—meeting the needs of modern metalworking industries.
Engineered for versatility, the line is capable of processing a wide range of metals, including High-Speed Steel (HSS), Cold Rolled Steel (CRS), Hot Rolled Steel (HRS), Stainless Steel (SS), and Aluminum (Alum). Its heavy-duty construction allows it to handle coils up to 2,500 mm in width and weighing as much as 35 tons, making it an ideal choice for service centers, construction suppliers, and high-capacity manufacturers. Whether working with ultra-thin sheets of 0.2 mm or robust material up to 9.0 mm thick, the system maintains consistent quality and tight tolerances across all production runs.A key highlight of this Slitting Line is its ability to produce up to 50 precision-cut strips in a single pass. The machine is equipped with an advanced double slitter or turnstile slitter setup, offering flexibility to adapt to different production requirements. This configuration ensures clean, burr-free edges and accurate widths, even at high speeds. Quick-change slitting tools allow for fast adjustments between jobs, reducing downtime and increasing throughput.Designed for both speed and stability, the line operates at a variable rate of 0 to 300 meters per minute, giving operators full control over processing speeds to match material types and production goals. The inclusion of a sophisticated tension unit—which can be configured with felt plates, belt bridles, or rolls—guarantees steady coil movement, prevents edge deformation, and enhances the overall quality of finished strips. https://sumikura.jp/slitting-lines/less

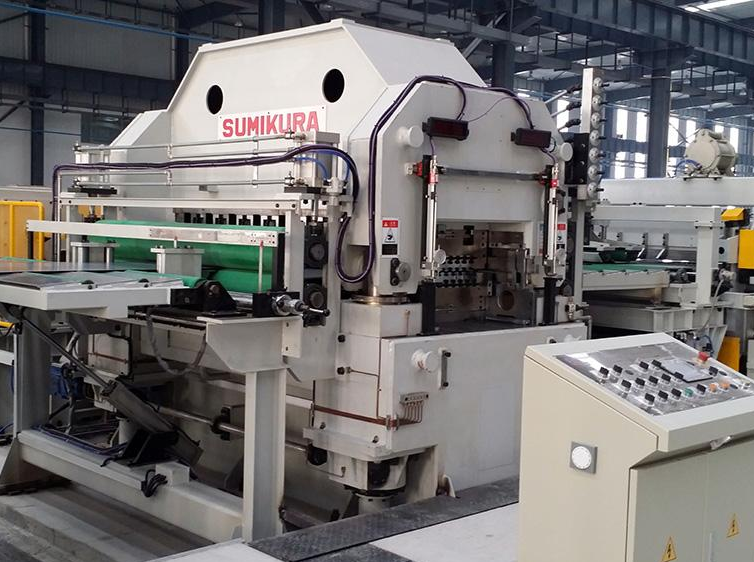

The line supports a thickness range of 0.2 mm to 9.0 mm, making it suitable for both light-gauge and heavy-gauge applications. Thin sheets are ideal for automotive panels, household appliances, and electronic components, while thicker sheets serve shipbuilding, construction, and heavy industrial machinery. This wide range of thicknesses allows manufacturers to consolidate multiple production tasks into a single system, improving operational efficiency and reducing capital... moreThe line supports a thickness range of 0.2 mm to 9.0 mm, making it suitable for both light-gauge and heavy-gauge applications. Thin sheets are ideal for automotive panels, household appliances, and electronic components, while thicker sheets serve shipbuilding, construction, and heavy industrial machinery. This wide range of thicknesses allows manufacturers to consolidate multiple production tasks into a single system, improving operational efficiency and reducing capital investment. https://sumikura.jp/cut-to-length-lines/ />
Operational flexibility is enhanced by a variable speed range of 0–80 meters per minute, enabling operators to adjust line speed based on material type, thickness, and production requirements. High-speed operation maximizes output for long production runs, while slower speeds allow careful handling of sensitive or high-precision materials. This ensures optimal quality control and productivity across different production scenarios.
Equipped with dual shear options, the CTL line features stop shear and rotary shear. Stop shear delivers precise, burr-free cuts for short sheets and thicker materials, reducing the need for secondary finishing. Rotary shear allows high-speed continuous cutting for long sheets or high-volume production, improving throughput without compromising accuracy. This dual-shear capability provides manufacturers with the flexibility to select the most efficient cutting method for each application.
Built with durability in mind, the CTL line incorporates a heavy-duty frame, precision-engineered components, and advanced control systems, ensuring long-term reliability and minimal maintenance requirements. Automated features simplify setup, reduce operator intervention, and minimize the risk of errors, guaranteeing maximum uptime and production efficiency. less
The Blanking Line is a cutting-edge sheet metal processing system designed for precision, efficiency, and reliability in industrial manufacturing. Engineered for Cold Rolled Steel (CRS) and Hot Rolled Steel (HRS), it is ideal for automotive production, appliance manufacturing, construction, and general sheet metal fabrication. By integrating high-capacity pressing, versatile material handling, high-speed operation, and automated magnetic stacking, this system ensures consistent output of high-quality blanks while streamlining workflow and boosting overall productivity.
Heavy-Duty Press Capacity
At the heart of the system is an 800-ton press with a 5,000 × 2,750mm working area, providing... moreThe Blanking Line is a cutting-edge sheet metal processing system designed for precision, efficiency, and reliability in industrial manufacturing. Engineered for Cold Rolled Steel (CRS) and Hot Rolled Steel (HRS), it is ideal for automotive production, appliance manufacturing, construction, and general sheet metal fabrication. By integrating high-capacity pressing, versatile material handling, high-speed operation, and automated magnetic stacking, this system ensures consistent output of high-quality blanks while streamlining workflow and boosting overall productivity.
Heavy-Duty Press Capacity
At the heart of the system is an 800-ton press with a 5,000 × 2,750mm working area, providing the power and stability required for large-scale production. This press delivers precise blanking for both small and large sheets, maintaining tight tolerances and dimensional accuracy throughout every cycle. Designed for continuous operation, it minimizes downtime and ensures long-term reliability even in demanding industrial environments.
Flexible Material and Size Handling
The blanking line accommodates sheet widths from 300mm to 2,000mm and lengths from 300mm to 6,000mm, allowing manufacturers to process both compact parts and large panels. With a thickness range of 0.2mm to 2.5mm, it efficiently blanks thin steel sheets, such as automotive body panels, as well as thicker structural components for appliances and construction projects. This flexibility allows manufacturers to consolidate production, reduce reliance on multiple machines, and maximize operational efficiency. https://sumikura.jp/blanking-lines/less
